JPT 2Receptable Connectors
| Code | Total Number of Ways | Kit Code | Color | Raw Material | Image |
|---|---|---|---|---|---|
| 1/967239/1 | 2 | 7284 | black | pbt | A |
| 1/967059/1 | 4 | 7286 | black | pbt | B |
| 2/967059/1 | 4 | 7638 | grey | pbt | C |
| 1/967241/1 | 6 | 7288 | black | pbt | D |
| 1/967240/1 | 10 | 7108 | black | PA 6.6 | E |
| 1/963217/1 | 16 | 7187 | black | PA 6.6 | F |
4.391 JPT 2Receptable Connectors
| Code: | 1/967239/1 |
| Total Number of Ways: | 2 |
| Kit Code: | 7284 |
| Color: | black |
| Raw Material: | pbt |
| Image: | A |
Possible to buy in kit version: 7284 - KIT CONNETTORE 2 VIE PF JPT
| Code: | 1/967059/1 |
| Total Number of Ways: | 4 |
| Kit Code: | 7286 |
| Color: | black |
| Raw Material: | pbt |
| Image: | B |
Possible to buy in kit version: 7286 - KIT CONNETTORE 4 VIE PF JPT
| Code: | 2/967059/1 |
| Total Number of Ways: | 4 |
| Kit Code: | 7638 |
| Color: | grey |
| Raw Material: | pbt |
| Image: | C |
Possible to buy in kit version: 7638 - KIT JPT TIPO SAAB 4 VIE PF GRIGIO
| Code: | 1/967241/1 |
| Total Number of Ways: | 6 |
| Kit Code: | 7288 |
| Color: | black |
| Raw Material: | pbt |
| Image: | D |
Possible to buy in kit version: 7288 - KIT CONNETTORE 6 VIE PF JPT
| Code: | 1/967240/1 |
| Total Number of Ways: | 10 |
| Kit Code: | 7108 |
| Color: | black |
| Raw Material: | PA 6.6 |
| Image: | E |
Possible to buy in kit version: 7108 - KIT 10 VIE PF JPT ASSY
| Code: | 1/963217/1 |
| Total Number of Ways: | 16 |
| Kit Code: | 7187 |
| Color: | black |
| Raw Material: | PA 6.6 |
| Image: | F |
Possible to buy in kit version: 7187 - KIT JPT GEH 16 VIE PF
JPT SAAB Receptacle Contact
| Code | Industrial Code | Wire Size Range (mm2) | Raw Material | Extraction Tool | Hand Tool |
|---|---|---|---|---|---|
| 927940/3 | - | - | - | - | - |
4.392 JPT SAAB Receptacle Contact
| Code: | 927940/3 |
| Industrial Code: | - |
| Wire Size Range (mm2): | - |
| Raw Material: | - |
| Extraction Tool: | - |
| Hand Tool: | - |
4.393 Single Wire Seal
| Code: | 828904/1 |
| Wire Size Range (mm2): | - |
| Color: | - |
| Raw Material: | - |
| Ext. Diam.: | - |
JPT2,8 Tab Housing
| Code | Total Number of Ways | Kit Code | Color | Raw Material | Image |
|---|---|---|---|---|---|
| 1/965421/1 | 2 | 7283 | black | pbt | A |
| 1/965261/1 | 4 | 7285 | black | pbt | B |
| 2/965261/1 | 4 | 7559 | grey | pbt | C |
| 1/965426/1 | 6 | 7287 | black | pbt | D |
| 1/962352/1 | 10 | 7107 | black | PA 6.6 | E |
| 1/964449/1 | 16 | 7186 | black | PA 6.6 | F |
4.394 JPT2,8 Tab Housing
| Code: | 1/965421/1 |
| Total Number of Ways: | 2 |
| Kit Code: | 7283 |
| Color: | black |
| Raw Material: | pbt |
| Image: | A |
Possible to buy in kit version: 7283 - KIT CONNETTORE 2 VIE PM JPT
| Code: | 1/965261/1 |
| Total Number of Ways: | 4 |
| Kit Code: | 7285 |
| Color: | black |
| Raw Material: | pbt |
| Image: | B |
Possible to buy in kit version: 7285 - KIT CONNETTORE 4 VIE PM JPT
| Code: | 2/965261/1 |
| Total Number of Ways: | 4 |
| Kit Code: | 7559 |
| Color: | grey |
| Raw Material: | pbt |
| Image: | C |
Possible to buy in kit version: 7559 - KIT JPT 2,8 PM 4 VIE GRIGIO
| Code: | 1/965426/1 |
| Total Number of Ways: | 6 |
| Kit Code: | 7287 |
| Color: | black |
| Raw Material: | pbt |
| Image: | D |
Possible to buy in kit version: 7287 - KIT CONNETTORE 6 VIE PM JPT
| Code: | 1/962352/1 |
| Total Number of Ways: | 10 |
| Kit Code: | 7107 |
| Color: | black |
| Raw Material: | PA 6.6 |
| Image: | E |
Possible to buy in kit version: 7107 - KIT 10 VIE PM MESSERLEIS-GEH

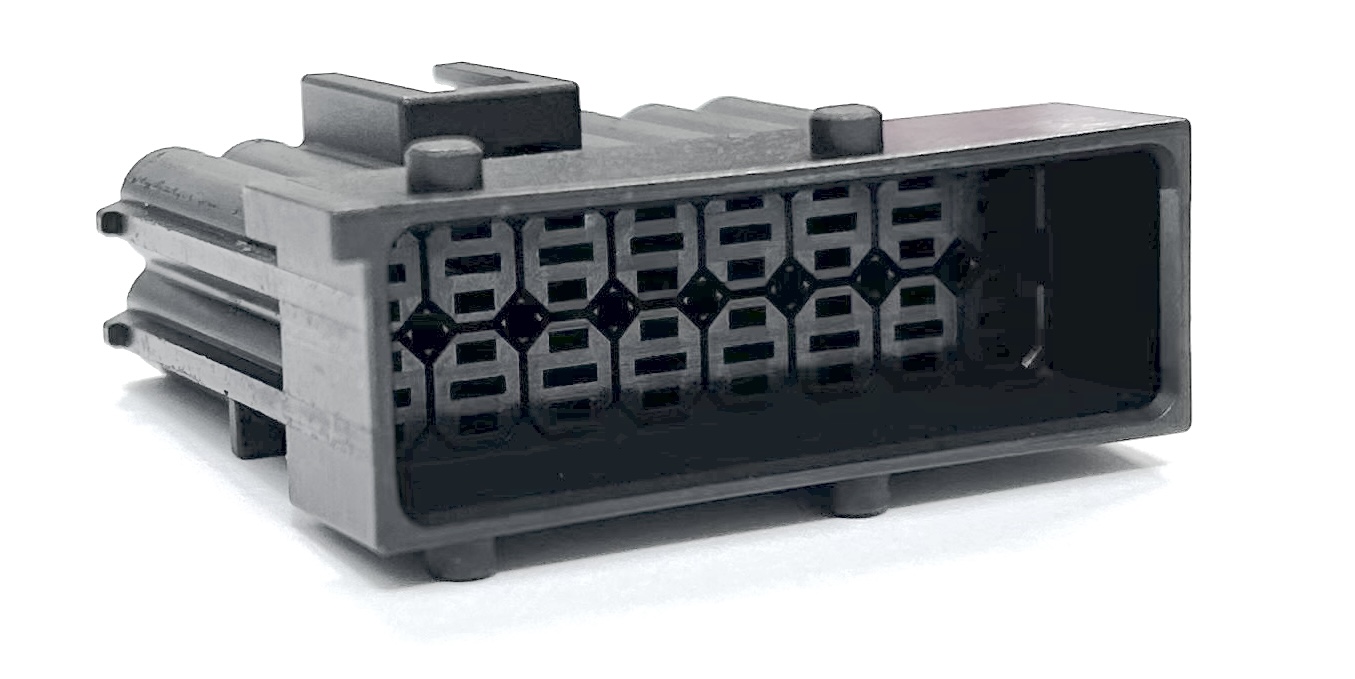

| Code: | 1/964449/1 |
| Total Number of Ways: | 16 |
| Kit Code: | 7186 |
| Color: | black |
| Raw Material: | PA 6.6 |
| Image: | F |
Possible to buy in kit version: 7186 - KIT JPT GEH 16 VIE PM
JPT SAAB Tab Contact
| Code | Industrial Code | Wire Size Range (mm2) | Raw Material | Extraction Tool | Hand Tool |
|---|---|---|---|---|---|
| 3280 | 2/962915/1 | 0,50 - 1,00 | Cu Fe Sn | 88040 | 3976 + 3982 |
4.395 JPT SAAB Tab Contact
| Code: | 3280 |
| Industrial Code: | 2/962915/1 |
| Wire Size Range (mm2): | 0,50 - 1,00 |
| Raw Material: | Cu Fe Sn |
| Extraction Tool: | 88040 |
| Hand Tool: | 3976 + 3982 |
4.396 JPT SAAB Single Wire Seal
| Code: | 828904/1 |
| Wire Size Range (mm2): | - |
| Color: | - |
| Raw Material: | - |
| Ext. Diam.: | - |
